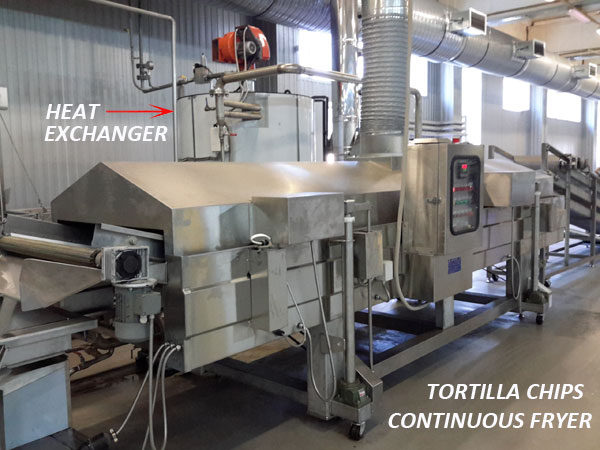

TORTILLA CHIPS FRYER WJF-502

Model No .: WJF-501, WJF-502, WJF-802, WJF-805
Certification: CE
Made In: Taiwan

We are professional tortilla chips production line manufacturer in Taiwan.We supply best quality and best running condition equipment for customers.
We provide the production capacity from 100 KG per hour to 450 KG per hour.

ALLAN’s unique continuous fryer designs help you produce the products of the best quality.

Features:

  1. Continuous oil circulation through the fryer, filter and heat exchanger provides the

precise control of temperature and quick adjustment while changing the amount

of the products.

  1. Oil inlet maintains stable oil flow to clear the product in feeding area without

creating back eddies or undercurrents.

  1. Fryer metering paddles and a submerge conveyor help to control cooking time for

consistent and uniform products.

  1. Superior oil quality, Low oil volume and rapid oil circulation assure the freshness of

the product with a long shelf life. Oil level is maintained automatically.

  1. Easy cleaning: Clean-in-place (CIP) spray nozzles in the hood and exhaust stack

help clean all oil circulating areas. Circulating cleaning system circulates the

cleaning water and Sodium bicarbonate following the same path as cooking oil,

thoroughly cleans and sanitizes all areas.

  1. Self-locking motorized screw jacks raise the hood, paddles, and submerge conveyor, giving the complete access to the frying bed.
  2. PLC touch panel. Use water proof control box to protect electric components.
  3. AII motors are provided with overload protector for safety operation.
  4. Emergency STOP button on both sides for safety operation.
  5. Pressure switch to check frying oil pressure inside the piping.
  6. Friendly design for easy operate and maintenance.
Key Features

Oil can be screened continuously, food won’t be stained.
Automatic control to quantity of oil, together with spare of oil supplying tank.
Conveyor can be rise and fall for easily clean.
Special design to oil soot collecting, filthy oil will not seep through back.
Oil temperature and flow speed can be certainly controlled.
Frying time can be adjustment.
Indirect heated, quality of food is stable, so food shelf-life can be extended.
Fuel can be chosen as: diesel, heavy oil or gas.
Automatic fire lighting, keeps detect system the oil pressure, and secure safety of operators.
Whole machine is made by stainless steel.
External heat exchanger energy up to 1,200,000 KCAL per hour.

Main Export Market

Europe ,Middle East ,North America ,Oceania ,South America, Africa ,Asia
